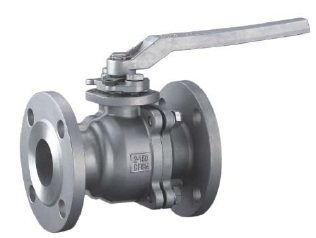

2F10K / 2F20K

tainless & Carbon Steel Valve 2F10K
Enlargement
Product Name : 2F10K / 2F20K
Product Description

PRODUCT DESCRIPTIONS: 2-PC BALL VALVE, FULL PORT, JIS10K/JIS20K FLANGE END, ISO5211 MOUNTING PAD

PRODUCT CODE: 2F10K / 2F20K

MATERIAL: CF8 / SS304, CF8M / SS316

FACE TO FACE: JIS 2002

FLANGE END: JIS B2212


  • tainless & Carbon Steel Valve 2F10K
  • Stainless & Carbon Steel Valve 2F20K
  • Stainless & Carbon Steel Valve 2F10K / 2F20K
E-catalog page :



Product Character

STANDARD: ASME B16.34

TESTING TO API598/SP-110

INVESTMENT CASTING BODY

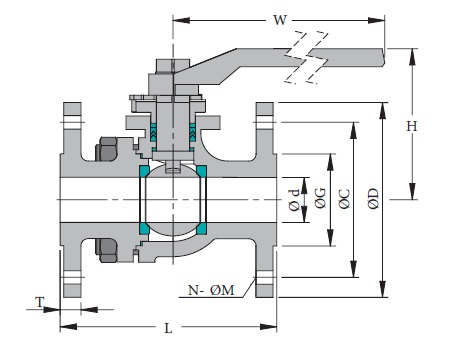

SIZEDNPNLHdGCDN-ψMWT
1/2" DN15 10K 108 74 15 52 70 95 4-15 132 12
20K 140 51 14
3/4" DN20 10K 117 72 20 58 75 100 4-15 132 14
20K 152 56 16
1" DN25 10K 127 88 25 70 90 125 4-19 170 14
20K 165 67 16
1-1/4" DN32 10K 140 92 32 80 100 135 4-19 170 16
20K 178 76 18
1-1/2" DN40 10K 165 125 40 85 105 140 4-19 233.5 16
20K 190 81 18
2" DN50 10K 178 136 50 100 120 155 4-19 233.5 16
20K 216 96 8-19 18
2-1/2" DN65 10K 190 155 65 120 140 175 4-19 233.5 18
20K 241 116 8-19 20
3" DN80 10K 203 163 80 130 150 185 8-19 304 18
20K 283 132 160 200 8-23 22
4" DN100 10K 229 178 100 155 175 210 8-19 304 18
20K 305 160 185 225 8-23 24
5" DN125 10K 254 262 125 185 210 250 8-23 500 20
20K 381 195 225 270 8-25 26
6" DN150 10K 267 293 150 215 240 280 8-23 545 22
20K 403 230 260 305 12-25 28
8" DN200 10K 292 345 200 262 290 330 8-23 745 22
20K 502 275 305 350 12-25 30
