2F4DMPN16-40

Stainless & Carbon Steel Valve 2F4DMPN16-40
Enlargement
Product Name : 2F4DMPN16-40
Product Description

PRODUCT DESCRIPTIONS: 2-PC BALL VALVE, FULL PORT, PN16 / PN40 FLANGE END, ISO DIRECT MOUNTING PAD

PRODUCT CODE: 2F4DMPN16-40

MATERIAL: CF8 / SS304, CF8M / SS316, WCB

FLANGE END TO DIN2545 / DIN 2543

FACE TO FACE: DIN 3202


  • Stainless & Carbon Steel Valve 2F4DMPN16-40
  • Stainless & Carbon Steel Valve 2F4DMPN16-40
  • Stainless & Carbon Steel Valve 2
E-catalog page :



Product Character

STANDARD: ASME B16.34

LOCKING LEVER AVAILABLE
TESTING TO API598/SP-110

INVESTMENT CASTING BODY

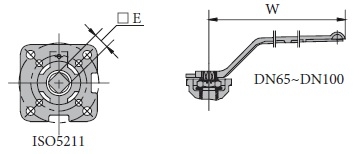

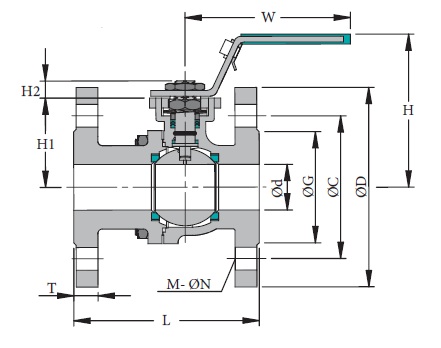

SIZEdØGØCØDLHH1H2TMNWEISO 5211
DN15 15 45 65 95 115 74 48 8 16 4 14 120 9 F03/F04
DN20 20 58 75 105 120 85 54 9 18 4 14 120 9 F03/F04
DN25 25 68 85 115 125 89 59 9 18 4 14 137 11 F04/F05
DN32 32 78 100 140 130 106 72 10 18 4 18 187 11 F04/F05
DN40 40 88 110 150 140 112 82 14 18 4 18 187 14 F05/F07
DN50 50 102 125 165 150 115 87 14 20 4 18 187 14 F05/F07
DN65 65 122 145 185 170 175 102 18.5 18 4 18 315 17 F07/F10
DN80 80 138 160 200 180 185 111 18.5 20 4 18 315 17 F07/F10
DN100 100 158 180 220 190 212 138 18.5 20 8 18 315 19 F07/F10
