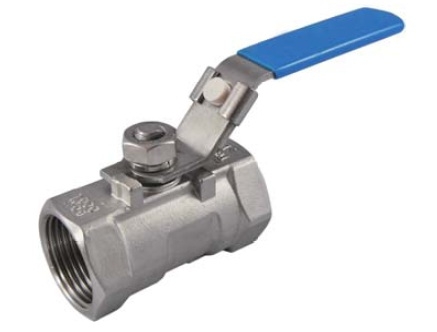

1-PC BALL VALVE, REDUCE PORT, 1000WOG
Enlargement Product Name : 1-PC BALL VALVE, REDUCE PORT, 1000WOG
Product Description
PRODUCT DESCRIPTIONS: KL-1L
PRODUCT CODE: KL-1L
MATERIAL: CF8 / SS304, CF8M / SS316, WCB
LOCKING LEVER AVAILABLE
E-catalog page :
Product Character
STANDARD: ASME B16.34
TESTING TO API598
INVESTMENT CASTING BODY

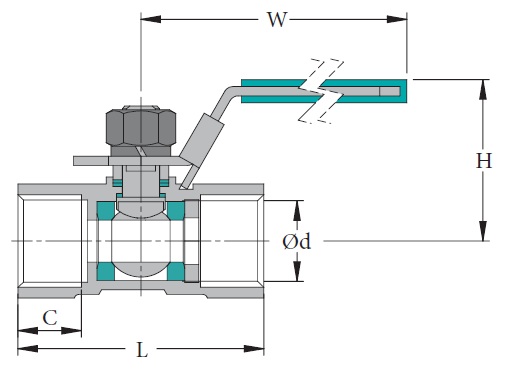

| SIZE | Ød | L | W | H | C | |
|---|---|---|---|---|---|---|
| 1/4" | DN8 | 5 | 39 | 70 | 31 | 10 |
| 3/8" | DN10 | 7 | 44 | 80 | 36 | 10 |
| 1/2" | DN15 | 9 | 55 | 90 | 39 | 13 |
| 3/4" | DN20 | 12.5 | 58 | 100 | 45 | 14 |
| 1" | DN25 | 16 | 70 | 110 | 51 | 16.5 |
| 1-1/4" | DN32 | 20 | 77 | 125 | 59 | 19 |
| 1-1/2" | DN40 | 25 | 82 | 145 | 63 | 19 |
| 2" | DN50 | 32 | 99 | 145 | 69 | 23 |
| 2-1/2" | DN65 | 38 | 130 | 195 | 85 | 31 |
| 3" | DN80 | 50 | 148 | 210 | 110 | 32 |
| 4" | DN100 | 65 | 193 | 310 | 120 | 43 |
