2-PC BALL VALVE, FULL PORT, 1000WOG WITH ISO-DIRECT MOUNTING PAD

Home > products line > Stainless & Carbon Steel Valve > V-2DM
Stainless & Carbon Steel Valve V-2DM
Enlargement

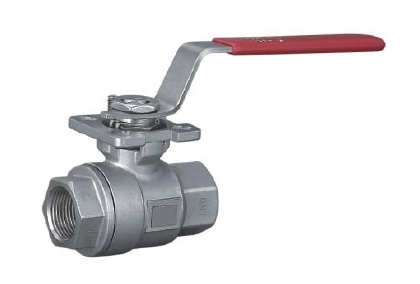

Product Name : 2-PC BALL VALVE, FULL PORT, 1000WOG WITH ISO-DIRECT MOUNTING PAD
Product Description

PRODUCT DESCRIPTIONS: V-2DM

PRODUCT CODE:V-2DM

ISO 5211 DIRECT MOUNTING PAD
MATERIAL: CF8 / SS304, CF8M / SS316, WCB
LOCKING LEVER AVAILABLE

ALL TYPE OF THREADINGS AVAILABLE

  • Stainless & Carbon Steel Valve V-2DM
  • Stainless & Carbon Steel Valve V-2DM
E-catalog page :



Product Character

STANDARD: ASME B16.34

TESTING TO API598
INVESTMENT CASTING BODY

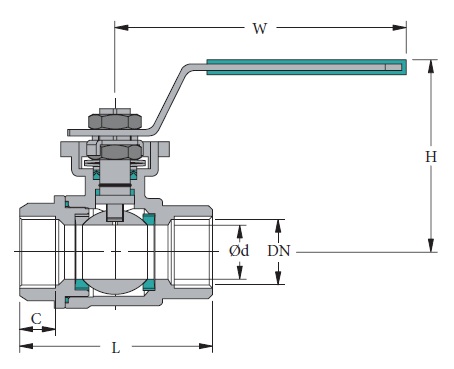

SIZEØdLWCH
1/4" DN8 12.5 60 120 12 63
3/8" DN10 12.5 60 120 14 63
1/2" DN15 15 76 120 19 70
3/4" DN20 20 80 137 18 78
1" DN25 25 90 137 19 82
1-1/4" DN32 32 110 187 24.5 88
1-1/2" DN40 40 120 187 25 93
2" DN50 50 140 187 26.5 103
2-1/2" DN65 65 185 315 40 165
3" DN80 80 205 315 42.5 180
4" DN100 98 240 315 43.5 205
