Product Name : V-2H
Product Description

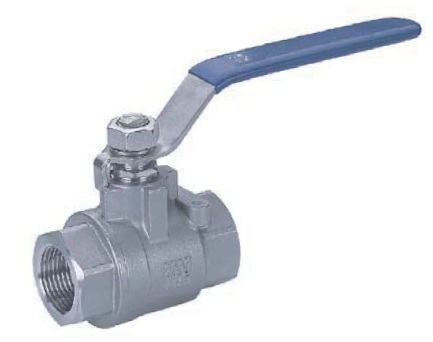

PRODUCT DESCRIPTIONS: 2-PC BALL VALVE, FULL PORT, 2000WOG / PN125

PRODUCT CODE: V-2H
MATERIAL: CF8 / SS304, CF8M / SS316, WCB
LOCKING LEVER AVAILABLE

ALL TYPE OF THREADINGS AVAILABLE

  • Stainless & Carbon Steel Valve V-2H
  • Stainless & Carbon Steel Valve V-2H
E-catalog page :



Product Character

STANDARD: ASME B16.34

TESTING TO API598/SP-110
INVESTMENT CASTING BODY

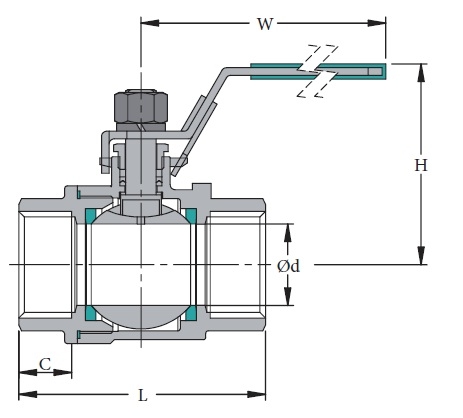

SIZEØd LWHC
1/4" DN8 10.5 53 99 56 10.5
3/8" DN10 12 53 99 56 10.5
1/2" DN15 14.8 61.5 99 62 14
3/4" DN20 19.8 70 109 69 14.5
1" DN25 23.8 82.5 137.5 75 17.5
1-1/4" DN32 31.8 95 137.5 80.5 18.5
1-1/2" DN40 37.8 107.5 171.5 93.5 19
2" DN50 47.8 121 171.5 104.5 21
2-1/2" DN65 63.8 160 206 128 26
3" DN80 79.8 178 241 140 29
4" DN100 97.8 217 306 166 34.5
