V-2L

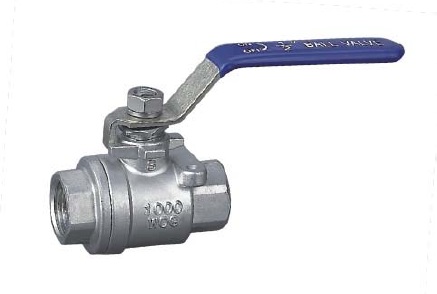

Stainless & Carbon Steel Valve V-2L
Enlargement
Product Name : V-2L
Product Description

PRODUCT DESCRIPTIONS: 2-PC BALL VALVE, FULL PORT, 1000WOG,

PRODUCT CODE: V-2L
MATERIAL: CF8 / SS304, CF8M / SS316, WCB
LOCKING LEVER AVAILABLE

ALL TYPE OF THREADINGS AVAILABLE

  • Stainless & Carbon Steel Valve V-2L
  • Stainless & Carbon Steel Valve V-2L
E-catalog page :



Product Character

STANDARD: ASME B16.34

TESTING TO API598
INVESTMENT CASTING BODY

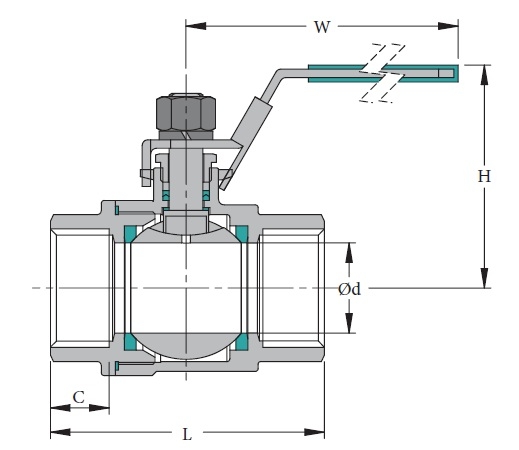

SIZEØd LWHC
1/4" DN8 11.5 55 98 56 10
3/8" DN10 12.5 55 98 56 10
1/2" DN15 15 61 99 60 14
3/4" DN20 20 70 108 67.5 15
1" DN25 24 82.5 136 73 20
1-1/4" DN32 32 95 137 79 20
1-1/2" DN40 38 107.5 171.5 90 21
2" DN50 48 120 171.5 98 21
2-1/2" DN65 64 161 215 129 26
3" DN80 80 178 240 140 31
4" DN100 98 220 317 153.5 37
