V-3BW

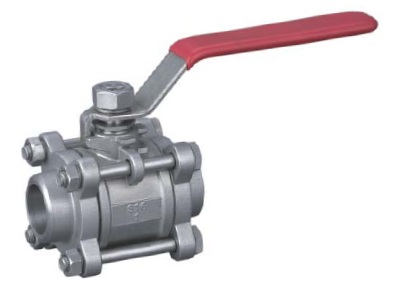

Stainless & Carbon Steel Valve V-3BW
Enlargement
Product Name : V-3BW
Product Description

PRODUCT DESCRIPTIONS: 3-PC BALL VALVE, FULL PORT, 1000WOG BUTT WELDING END

PRODUCT CODE: V-3BW

MATERIAL: CF8 / SS304, CF8M / SS316, WCB
LOCKING LEVER AVAILABLE

BUTT WELDING END DESIGN

  • Stainless & Carbon Steel Valve V-3BW
  • Stainless & Carbon Steel Valve V-3BW
E-catalog page :



Product Character

STANDARD: ASME B16.34

TESTING TO API598/SP-110
INVESTMENT CASTING BODY

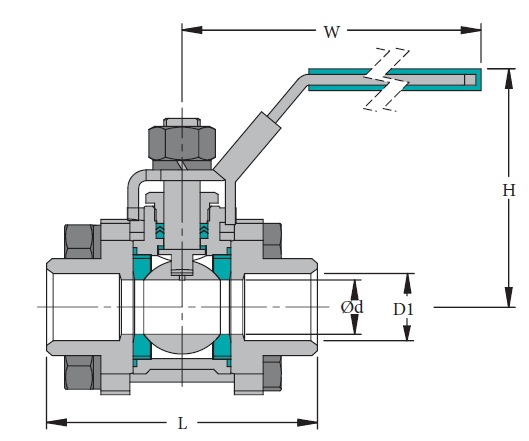

SIZEØdD1LHW
1/4" DN8 10.5 10.5 55 42 102
3/8" DN10 10.5 13 55 42 102
1/2" DN15 15 16 65 58 101
3/4" DN20 20 21 76.5 63 101
1" DN25 24 26.5 86 76 137
1-1/4" DN32 32 35 98 80 150
1-1/2" DN40 38 41 114 93 175
2" DN50 48 52 132 110 175
2-1/2" DN65 64 66 164 124 215
3" DN80 78 80.5 182 151 235
4" DN100 98 104.6 235 167 313
