2-PC VERTICAL CHECK VALVE 200WOG THREAD END
Enlargement Product Name : 2-PC VERTICAL CHECK VALVE 200WOG THREAD END
Product Description
PRODUCT DESCRIPTIONS: VCT-2P
PRODUCT CODE: VCT-2P
MATERIAL: CF8 / SS304, CF8M / SS316
ALL THREADINGS AVAILABLE
E-catalog page :
Product Character
STANDARD: ASME B16.34
TESTING TO API598
INVESTMENT CASTING BODY

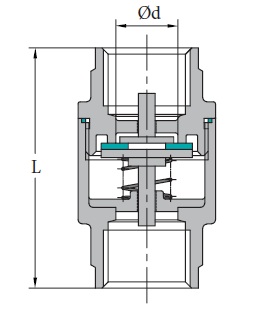

| SIZE | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" | 2-1/2" | 3" | 4" |
|---|---|---|---|---|---|---|---|---|---|
| L | 58 | 70 | 82 | 88 | 102 | 115 | 125 | 155 | 195 |
| Ød | 15 | 20 | 25 | 32 | 38 | 50 | 65 | 80 | 100 |
