1-PC WAFER BALL VALVE FLANGE END PN16 ISO 5211 MOUNTING PAD

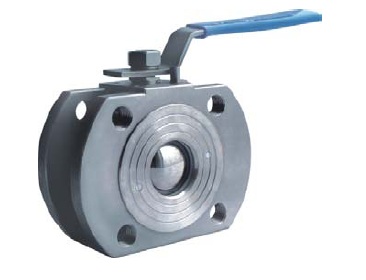

Enlargement Product Name : 1-PC WAFER BALL VALVE FLANGE END PN16 ISO 5211 MOUNTING PAD
Product Description
PRODUCT DESCRIPTIONS: W-1F
PRODUCT CODE: W-1F
MATERIAL: CF8 / SS304, CF8M / SS316
DIN2633 PN16 FLANGE END
ISO 5211 MOUNTING PAD
LOCKING LEVER AVAILABLE
E-catalog page :
Product Character
STANDARD: ASME B16.34
TESTING TO API598
INVESTMENT CASTING BODY

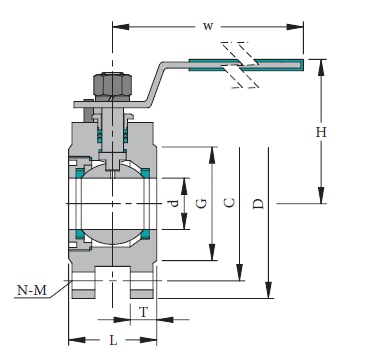

| SIZE | Ød | L | H | W | ØG | ØC | ØD | N | M | T |
|---|---|---|---|---|---|---|---|---|---|---|
| DN15 | 15 | 40 | 72.5 | 131 | 45 | 65 | 95 | 4 | M12 | 10 |
| DN20 | 20 | 45 | 74.5 | 135 | 58 | 75 | 105 | 4 | M12 | 12 |
| DN25 | 23 | 54 | 83.5 | 150 | 68 | 85 | 115 | 4 | M12 | 14.8 |
| DN32 | 29 | 54 | 90 | 150 | 78 | 100 | 133 | 4 | M16 | 14.8 |
| DN40 | 38 | 62 | 97 | 184 | 88 | 110 | 150 | 4 | M16 | 15 |
| DN50 | 46 | 72 | 104 | 184 | 102 | 125 | 165 | 4 | M16 | 15 |
| DN65 | 56 | 90 | 132 | 265 | 122 | 145 | 185 | 4 | M16 | 16.5 |
| DN80 | 73 | 110 | 146 | 265 | 138 | 160 | 200 | 8 | M16 | 18 |
| DN100 | 93 | 135 | 185 | 312 | 157 | 180 | 224 | 8 | M16 | 18.5 |
