2-PC BALL VALVE FULL PORT 150LBS/300LBS FLANGE END ISO5211 MOUNTING PAD

Home > products line > Stainless & Carbon Steel Valve > 2F1502F300

Stainless & Carbon Steel Valve 2F1502F300

Enlargement

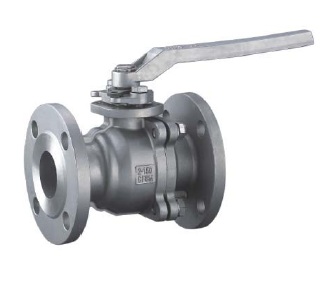

Product Name : 2-PC BALL VALVE FULL PORT 150LBS/300LBS FLANGE END ISO5211 MOUNTING PAD

Product Description

PRODUCT DESCRIPTIONS: 2F150 / 2F300

PRODUCT CODE: 2F150 / 2F300

MATERIAL: CF8 / SS304, CF8M / SS316

ISO 5211 MOUNTING PAD

FACE TO FACE: ASME B16.10
FLANGE END TO ANSI B16.5

E-catalog page :

Product Character

STANDARD: ASME B16.34

TESTING TO API598/SP-110

INVESTMENT CASTING BODY

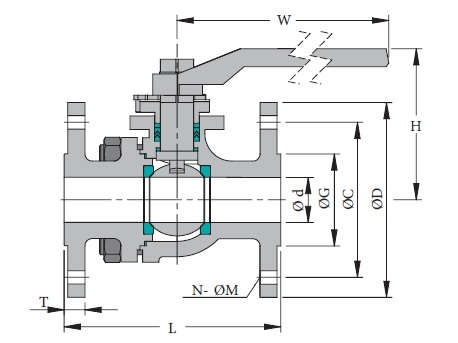

SIZE	DN	PN	L	H	Ød	ØG	ØC	ØD	N-ØM	W	T
1/2"	DN15	150LB	108	74	15	35	60.5	89	4-16	132	12
1/2"	DN15	300LB	140	72	15	35	66.5	95	4-16	115	14.3
3/4"	DN20	150LB	117	74	20	43	70	98.5	4-16	132	12
3/4"	DN20	300LB	152	76	20	43	82.5	117	4-19	115	15.9
1"	DN25	150LB	127	88	25	51	79.5	108	4-16	170	12
1"	DN25	300LB	165	100	25	51	89	124	4-19	210	17.5
1-1/4"	DN32	150LB	140	92	32	64	89	117	4-16	170	12.7
1-1/4"	DN32	300LB	178	92	32	64	98.5	133	4-19	150	19.1
1-1/2"	DN40	150LB	165	125	40	73	98.5	127	4-16	233	14.3
1-1/2"	DN40	300LB	190	130	40	73	114.5	156	4-22	260	20.7
2"	DN50	150LB	178	135	50	92	120.5	152	4-19	233	15.9
2"	DN50	300LB	216	140	50	92	127	165	8-19	260	22.3
2-1/2"	DN65	150LB	190	164	65	105	139.5	178	4-19	233	17.5
2-1/2"	DN65	300LB	241	164	65	105	149	190	8-22	320	25.4
3"	DN80	150LB	203	164	80	127	152.5	190.5	4-19	304	19.1
3"	DN80	300LB	283	184	80	127	168	210	8-22	360	28.6
4"	DN100	150LB	229	177	100	157	190.5	229	8-19	304	23.9
4"	DN100	300LB	305	203	100	157	200	254	8-22	360	31.8
5"	DN125	150LB	356	263	125	186	216	254	8-22	497	23.9
5"	DN125	300LB	381	260	125	186	235	279	8-22	600	35
6"	DN150	150LB	394	293	150	216	241.5	279	8-22	545	25.4
6"	DN150	300LB	403	300	150	216	270	318	12-22	645	36.6
8"	DN200	150LB	457	345	200	270	298.5	343	8-22	745	28.6
8"	DN200	300LB	419	353.6	200	270	330	381	12-25	875	42
