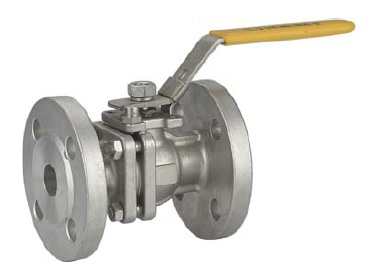

2-PC BALL VALVE, FULL PORT, PN16 / PN40 FLANGE END, ISO-MOUNTING PAD

Enlargement

Product Name : 2-PC BALL VALVE, FULL PORT, PN16 / PN40 FLANGE END, ISO-MOUNTING PAD

PRODUCT DESCRIPTIONS: 2F4PN16 / 2F4PN40

PRODUCT CODE: 2F4PN16 / 2F4PN40

MATERIAL: CF8 / SS304, CF8M / SS316, WCB

FLANGE END TO DIN2543 / DIN 2545

FACE TO FACE: DIN 3202-F4/F5

E-catalog page :

STANDARD: ASME B16.34

LOCKING LEVER AVAILABLE
TESTING TO API598/SP-110

INVESTMENT CASTING BODY

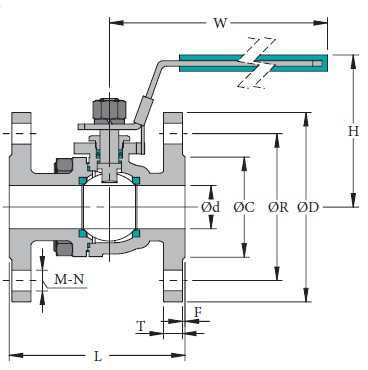

SIZE			Ød	L	H	E	C	ØR	ØD	N-ØM	T	F	ISO 5211
1/2"	DN15	PN16	15	115	70	115	45	65	95	4-14	14	2	F03
1/2"	DN15	PN40	15	115	70	115	45	65	95	4-14	16	2	F03
3/4"	DN20	PN16	20	120	74.5	135	58	75	105	4-14	16	2	F04
3/4"	DN20	PN40	20	120	74.5	135	58	75	105	4-14	18	2	F03
1"	DN25	PN16	25	125	81.5	135	68	85	115	4-14	16	2	F04
1"	DN25	PN40	25	125	81.5	135	68	85	115	4-14	18	2	F04
1-1/4"	DN32	PN16	32	130	95	150	78	100	140	4-18	18	2	F04
1-1/4"	DN32	PN40	32	130	95	150	78	100	140	4-18	18	2	F04
1-1/2"	DN40	PN16	38	140	100	184	88	110	150	4-18	20	3	F05
1-1/2"	DN40	PN40	38	140	100	184	88	110	150	4-18	18	3	F05
2"	DN50	PN16	50	150	120	215	102	125	165	4-18	20	3	F07
2"	DN50	PN40	50	150	120	215	102	125	165	4-18	20	3	F05
2-1/2"	DN65	PN16	65	170	130	265	122	145	185	4-18	20	3	F07
2-1/2"	DN65	PN40	65	170	130	265	122	145	185	8-18	22	3	F07
3"	DN80	PN16	80	180	150	265	138	160	200	8-18	22	3	F07
3"	DN80	PN40	80	180	150	265	138	160	200	8-18	24	3	F07
4"	DN100	PN16	100	190	165	315	158	180	220	8-18	24	3	F07
4"	DN100	PN40	100	190	165	315	162	190	235	8-22	24	3	F09
5"	DN125	PN16	125	325	180	497	188	210	250	8-18	26	3	F12
5"	DN125	PN40	125	325	180	497	188	220	270	8-26	26	3	F09
6"	DN150	PN16	150	350	200	545	212	240	285	8-23	26	3	F12
6"	DN150	PN40	150	350	200	545	218	250	300	8-26	28	3	F09
8"	DN200	PN16	200	400	230	745	268	295	340	12-23	30	3	F12
8"	DN200	PN40	200	400	230	745	285	320	375	12-30	34	3	F09
