JIS FLANGE
Enlargement Product Name : JIS FLANGE
Product Description
PRODUCT NAME: UTF02
PRODUCT CODE: UTF02
SIZE: 3/4”-4”
Product Character

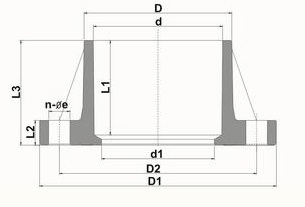

| SIZE | D | d | d | d | d | D1 | D2 | d1 | L1 | L2 | L3 | n-Øe |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DIN | JIS | BS | ||||||||||
| 3/4" | 35.3 | 26.67 | 25 | 26 | 26 | 100 | 75 | 22 | 35 | 15 | 40 | 4-Ø15 |
| 1" | 43 | 33.4 | 32 | 32 | 34 | 125 | 89 | 25 | 40 | 15 | 46 | 4-Ø19 |
| 1-1/4" | 49 | 42.16 | 40 | 38 | 42 | 135 | 100 | 30 | 44 | 16 | 50.5 | 4-Ø19 |
| 1-1/2" | 60.5 | 48.26 | 50 | 48 | 48 | 140 | 105 | 41 | 55 | 16 | 61.5 | 4-Ø19 |
| 2" | 73.5 | 60.33 | 63 | 60 | 60 | 155 | 120 | 52 | 63 | 20 | 71 | 4-Ø19 |
| 2.1/2" | 90.5 | 76 | 75 | 76 | 76 | 175 | 140 | 67 | 61 | 22 | 70 | 4-Ø19 |
| 3" | 105.5 | 89 | 90 | 89 | 89 | 185 | 150 | 75 | 64 | 22 | 73 | 8-Ø19 |
| 4" | 131 | 114.3 | 110 | 114 | 114 | 210 | 175 | 100 | 83.5 | 22 | 95 | 8-19 |
