E-Adaptor Hose Shank
Enlargement Product Name : E-Adaptor Hose Shank
Product Description
Product Name: E-Adaptor Hose Shank
Item Number: QCE
Material: SS304 / SS316
Thread: NPT / BSP / BSPT
E-catalog page :
Product Character
Design to DIN2828 and Testing to Standard API598

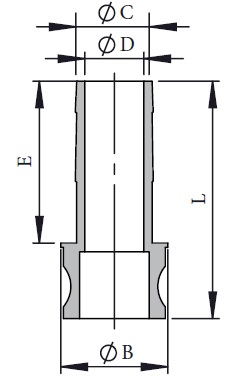

| SIZE | 1/2" | 3/4" | 1" | 1.1/4" | 1.1/2" | 2" | 2.1/2" | 3" | 4" | 6" |
|---|---|---|---|---|---|---|---|---|---|---|
| B | 34.5 | 34.5 | 39 | 48 | 56 | 65.3 | 80 | 96 | 122 | 188 |
| C | 15 | 21.4 | 27.4 | 34 | 40.5 | 53 | 66.5 | 79.4 | 104 | 157 |
| D | 8 | 14 | 20 | 25 | 31 | 43 | 55 | 67 | 92 | 140 |
| E | 45 | 54 | 60 | 61 | 64 | 78 | 85 | 101.6 | 110 | 141 |
| L | 85 | 94 | 106 | 115 | 120 | 140 | 150 | 165.1 | 180 | 220 |
